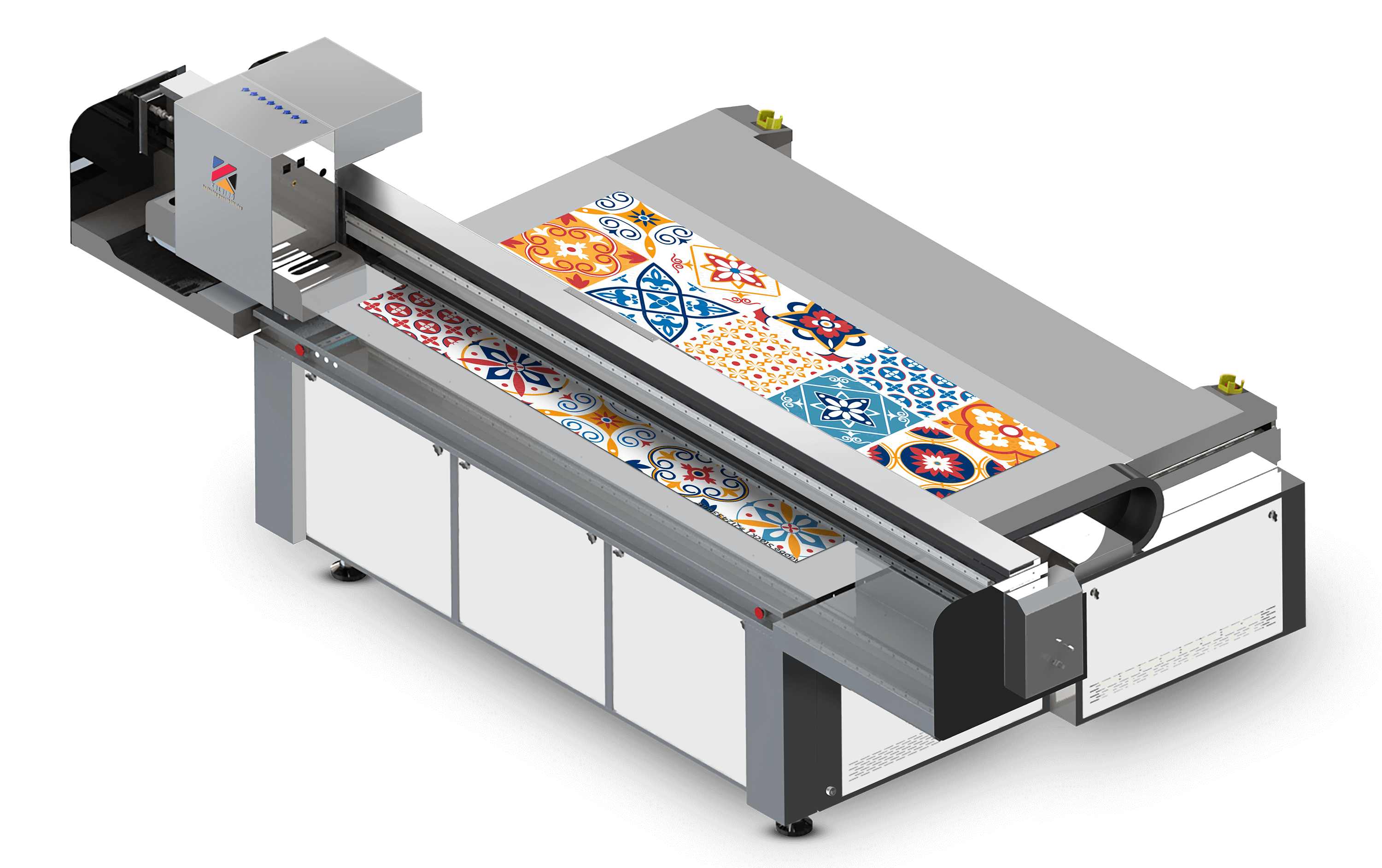

The Kaleido 2513R UV Flatbed Printer is a high-performance industrial printing solution designed for precision, versatility, and efficiency. With advanced UV LED curing technology, a stable gantry system, and dual negative pressure ink flow, it ensures superior print quality on a variety of rigid materials. Its automatic height detection and powerful vacuum bed make it ideal for large-scale printing applications across different industries.
✔ Dual Negative Pressure System – Ensures stable ink jetting and flow for uninterrupted printing.
✔ Powerful Vacuum Bed – Features 11,000 vacuum holes divided into 4 compartments, eliminating the need for full taping and enabling multi-job printing.
✔ Stable Gantry System – Welded steel beam and precise alignment deliver flawless movement for sharp, accurate prints.
✔ Ricoh Gen 5/6 Printheads – Offers grayscale piezoelectric nozzles, ink droplet sizes from 7-35pl, and resolutions up to 1200x1200 dpi.
✔ Automatic Height Detector – Automatically detects material thickness and adjusts head height for optimal printing.
✔ Anti-Collision Sensor – Prevents printhead damage from curled or swollen materials.
✔ White Ink Circulation System – Prevents clogging, ensuring smooth ink flow and consistent white ink application.
✔ Anti-Static Bars – Removes electrostatic charges for better ink droplet control.
✔ Optional Varnish Printing – Enhances visuals and adds tactile effects to prints.
✔ Emergency Stop Buttons – Positioned at each corner for enhanced safety and to minimize material waste.
✔ High-Speed Printing – Multiple pass modes available for high-volume production.
✔ USB 2.0 Connectivity – Ensures fast data transfer and smooth operation.
✔ Onyx RIP Software – Provides color management and workflow optimization.
