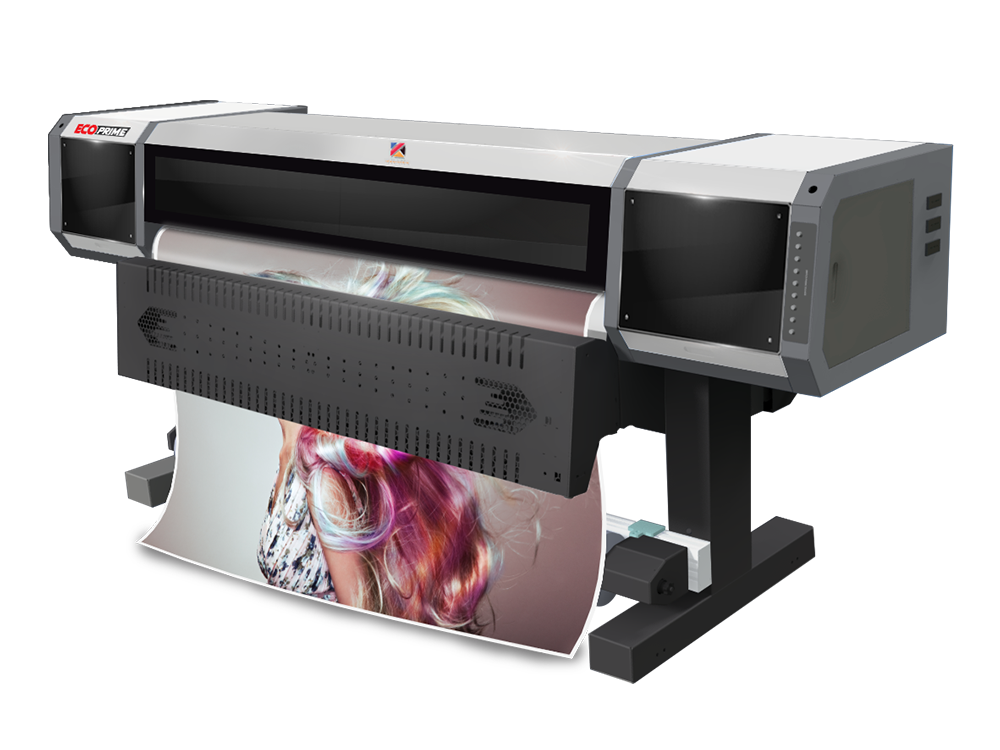

Eco Prime - Eco Solvent Printer

The Keliedo Eco Prime is a state-of-the-art eco-solvent printer designed for premium vinyl printing, wallpaper printing, and poster printing. With a remarkable printing speed of 280 SQFT/HR, it delivers quick and efficient output without any compromise on accuracy or color intensity. It is specifically designed for professional-level indoor branding

** VIEW AND DOWNLOAD THE BROCHURE **

Get Pricing Download Brochure

The Keliedo Eco Prime is an excellent eco-solvent printer built for outstanding vinyl printing and wallpaper printing. With photo-realistic image quality, it produces exceptional visuals with accuracy and brightness, which makes it ideal for indoor branding and high-impact graphics. Its state-of-the-art technology provides the best color accuracy and longevity, ensuring every print becomes exceptional.

	Epson i3200 Heads Precision Core Fire Jets		Speed 280 Sqft/hr
	Optical Fibre Cable		Upgradeable from 1 Head to 2 Heads
	BYHX Electronics		Gigantic Print Width (1800mm)
	Heavy Body Structure

Eco Prime
Technical Key Specification
Print Heads		Epson i3200 Head Precision Core Fire Jets
Model		E1801			E1802
No. of Print Head		1			2
Media	Width	18500mm
	Thickness	Maximum 1.0 mm with included Liner (Subject to Flexbility)
	Roll Outer Diameter	Maximum 200mm
	Roll Weight	Maximum 50 kg
	Core Diameter	76.2 mm, 50.80mm
Media Types		Vinyl, PVC Banner, SAV, Window Film, Backlit Film, Fabric (Eco Solvent Base)
Media Heating System		Pre-heater and post-heater, setting range for the preset temprature-30 to 600c Dryer setting range for the preset temprature: 30 to 600c
Print Specifications
Printing Width		Maximum 1800mm
Connectivity		LAN
Printing Resolution (dots per inch)		Maximum up to 2400 dpi
Ink Specifications
Ink Types		Eco Solvent Ink
Ink Colors		CYAN, MAGENTA, YELLOW, BLACK (CMYK) (4 Color)
Power Consumptions & Working Environment
Power Requirements		AC 220V +/-10% 20 Amps, 50/60 Hz
Power ON		Temperature 18 to 280C Humidity: 20 to 80%RH (non-condensing)
Power OFF		Temperature 5 to 400C Humidity: 20 to 80%RH (non-condensing)
Machine Measurements
Printer Dimensions		3200mm x 1000mm x 1350mm (LxWxH)
Weight (approx with stand)		350 Kgs
Performance
Print Mode		Print Resolution	Passes	Speed (SQFT/HR) - Head 1	Speed(SQFT/HT) - Head 2
Mode 1		720x1200	2	154 SQFT/HR	280 SQFT/HR
Mode 2		720x1800	3	113 SQFT/HR	206 SQFT/HR
Mode 3		720x2400	4	85 SQFT/HR	154SQFT/HR
Mode 4		720x1800	5	56 SQFT/HR	103 SQFT/HR
Mode 5		720x2400	6	44 SQFT/HR	79 SQFT/HR

High Quality Vinyl Printing Machine
